GET A WHOLE NIGHT OF HUNTING ON ONE BATTERY SET AND ONE CHARGE OF BASIC PRECISION POWER KIT (sold separately)!
PRODUCT OVERVIEW

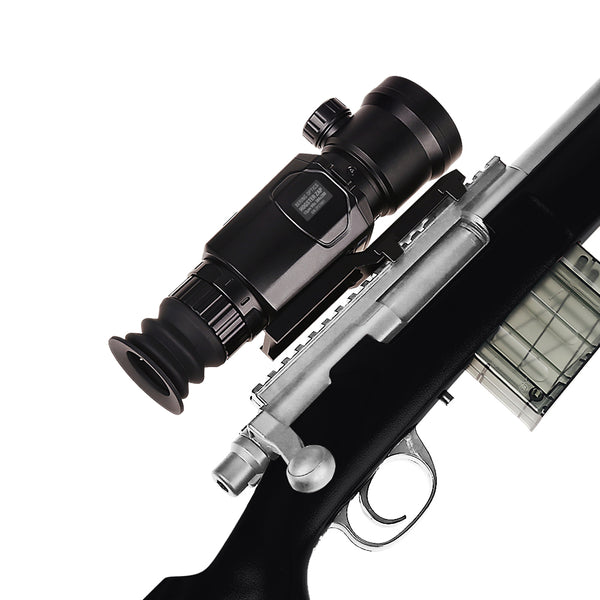

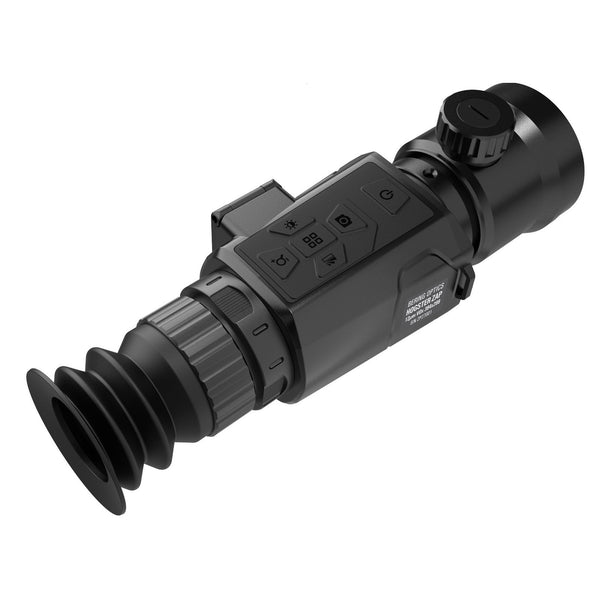

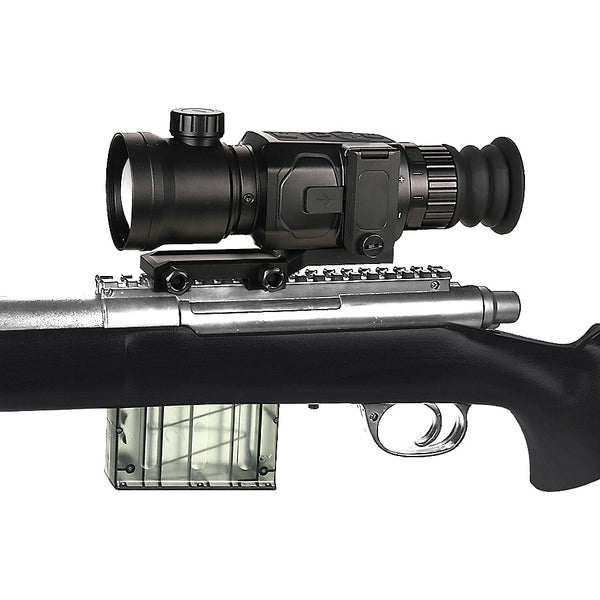

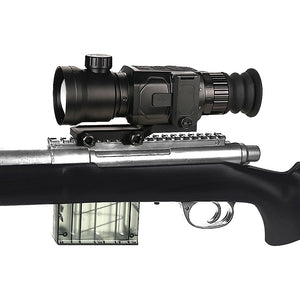

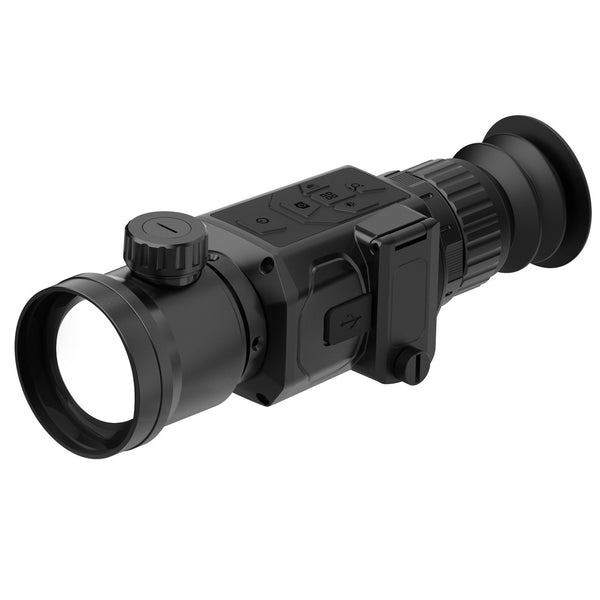

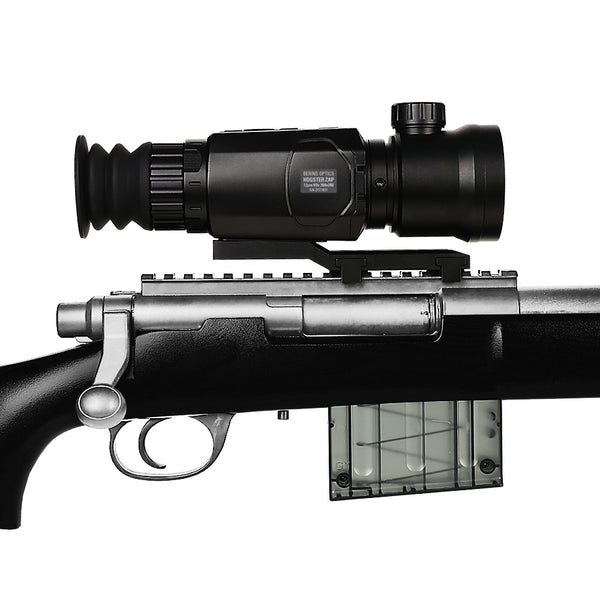

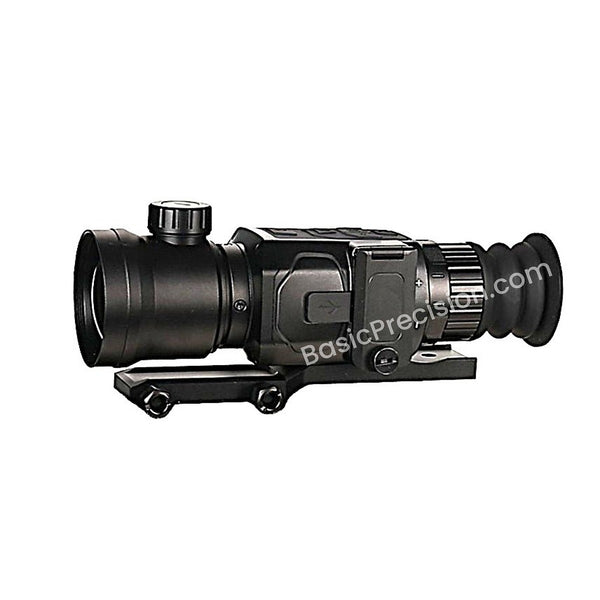

The Bering Optics® HOGSTER ZAP™ Dedicated Medium-Range Compact Thermal Scope features an advanced 12 μm Vanadium Oxide 384x288 core and a high-quality 100% Germanium lens, making it ideal for medium-range predator control. Superior optics combined with a precision internal focusing lens mechanism and proprietary electronics create the cutting-edge performance of the scope.
HOGSTER ZAP™ features an intuitive, user-friendly menu that allows customization of settings to the shooter’s needs without disengaging from the target, including BDC and crosshair reticles. The scope offers picture-in-picture and zeroing calibration memory functions, as well as a digital compass and inclinometer to further enhance the user experience.
The scope is rated for the .308 caliber and is equipped with a Picatinny rail. Its compact size allows it to be used as a handheld thermal imager for observation.
An optional external 5 VDC power supply can be connected via the USB-C type port and cable (included).
The scope is nitrogen-purged, water-resistant, dust- and shock-proof.
FEATURES
- 100% aluminum alloy body
- Superior for hog hunting and predator control at medium- distances up to 1000 yards
- Picture-in-Picture function- 2X multiplied image on the top of the display
- Automatic shutter based thermal 12uμ VOx 384x488 core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Iron Hot / Rainbow
- 6 reticle patterns
- 6 color options for each reticle pattern
- Manual control of image sharpness, screen brightness, and image contrast
- Ability to save 5 reticle settings
- An internal focusing lens mechanism
- 5V DC external power supply option via the USB-C type port
- Blind Pixel repair tool option
- Standby mode
- Digital Compass
- Digital zoom rapid movement X2, X3, X4
- Inclinometer
- Battery status indicator
- Nitrogen purged
- Video out
- 16Gb internal memory
- Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
- Timer
- Freeze Function for one-shot zero
- Picatinny mount with guaranteed zero retention
- 4-year transferable manufacturer's warranty on parts and labor
SPECIFICATION
|
Product Modification |
HOGSTER ZAP-35 |
|
Optical Magnification, x |
2.8 |
|
Digital Multiplication |
2X, 3X, 4X |
|
Objective Lens system |
35mmF/1.1 |
|
Angular FOV at Optical Magnification (horizontal x vertical), degrees |
H 7.5° x V5.7° |
|
Linear FOV at Optical Magnification @ 100yrds (Horizontal x Vertical), yd |
H 13.1 x V 10 |
|
Eye relief, mm |
40mm |
|
Focus range, yard |
4 to infinity |
|
Diopter Adjustment, D |
-4; +4 |
|
Core resolution, pxl |
384x288 |
|
Pixel pitch, µm |
12 |
|
Start-up time, min., sec. |
8 |
|
Thermal Sensitivity (NETD), mK |
<35 |
|
Display type and resolution, pxl |
AMOLED 1440x1080 |
|
Detection Range (approx.), yd/m (Target size: Running Hog L16 & H19) |
1000 / 900 |
|
Dimensions, in |
7.87”x2.6”x2.83” |
|
Weight without mount and batteries, oz |
23.3 |
|
Power supply |
3.7V 18350 rechargeable (two) or 5V DC via USB-C |
|
Estimated battery life, hours |
5 with two 3.7V 18350 2800mAh |
|
Operating temperature, typical, °F |
-4°F to +122°F |
|
Water intrusion |
IP66 |
|
Humidity, % |
up to 96% |
KIT INCLUDES
- HOGSTER ZAP 384x288 12µm Thermal Sight
- Video-out or external power supply Type C USB cable
- Picatinny Mount with screws
- Two 3.7V 18350 1400mAh rechargeable batteries
- Batteries charger
- Front lens protective cap
- Eyepiece rubber eye guard
- Soft Carrying Case
- Lens Cleaning Cloth
- Instructions manual
RECOMMENDED OPTIONAL ACCESSORIES:
- Picatinny Mountable Powerbank
- THERMAL TARGETS for precise zeroing
- CHEEK RISER for Bolt-Action Rifles
